AXQJ 1kV Full screen

Products

AXQJ 1 kV 4x50/29 Full screen

Nexans ref. 15154798

  • Pakavimas: Drum (500m)
  • Laidininko skerspjūvis: 50 mm²
  • Nominalus išorinis diametras: 29,0 mm
  • Apytikslis svoris: 113,0 kg/100m

AXQJ 1 kV 4x 95/57 Full screen

Nexans ref. 15154898

  • Pakavimas: Drum (500m)
  • Laidininko skerspjūvis: 95 mm²
  • Nominalus išorinis diametras: 38,0 mm
  • Apytikslis svoris: 204,0 kg/100m

AXQJ 1 kV 4x150/88 Full screen

Nexans ref. 15154998

  • Pakavimas: Drum (500m)
  • Laidininko skerspjūvis: 150 mm²
  • Nominalus išorinis diametras: 48,0 mm
  • Apytikslis svoris: 313,0 kg/100m

AXQJ 1 kV 4x240/146 Full screen

Nexans ref. 15155098

  • Pakavimas: Drum (500m)
  • Laidininko skerspjūvis: 240 mm²
  • Nominalus išorinis diametras: 58,0 mm
  • Apytikslis svoris: 500,0 kg/100m

Description

Description

Standards

  • International
    HD 603 S1/5P

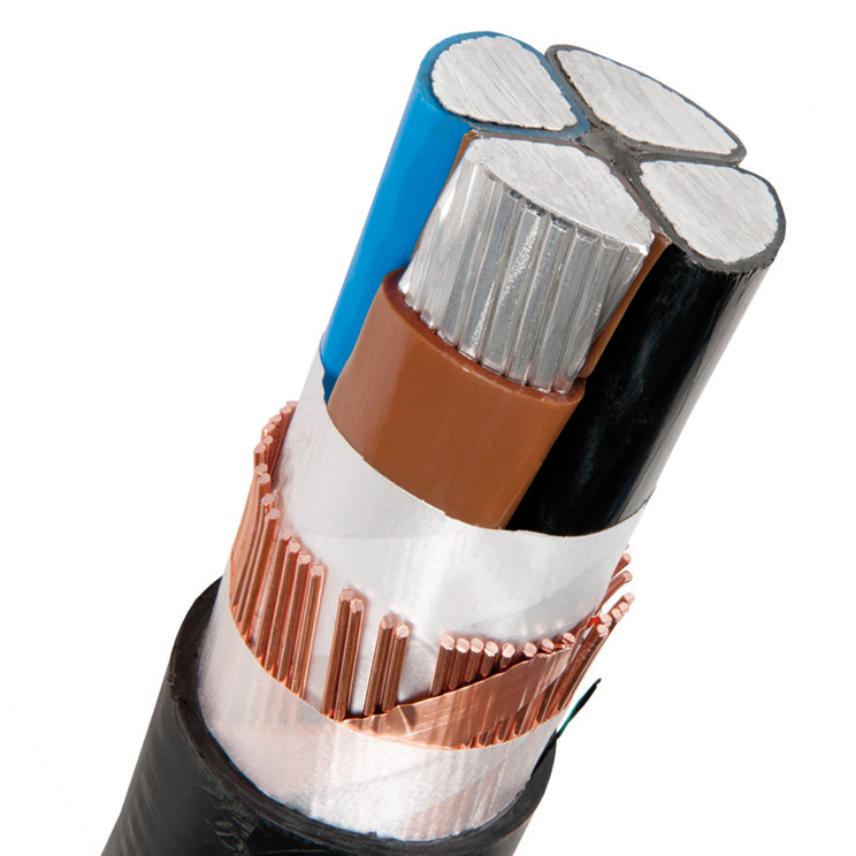

AXQJ is a halogen free, XLPE-insulated, HFFR-sheathed cable with sector shaped, stranded aluminium conductors. The cable has a screen of annealed copper wires with opposite open helix of copper. AXQJ is designed according to HD 603. The conductors have resistance and number of wires according to SS-EN 60228 class 2. Same resistance in the conductor and screen. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. The cable type meets the requirements for CPR Dcas2d2a2. The cable emits no corrosive gases and has low smoke production during fire.






Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


Standards

AXQJ is manufactured and tested according to HD 603 5-P in applicable parts. The cable can be loaded in accordance with national regulations on electrical installations.


Certification

Approved by Intertek SEMKO.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Aliumininiai
Laidininko forma
Sektoriaus formos, susuktas (SM)
Izoliacija
XLPE
Išorinis apvalkalas
HFFR
Spalva
Juodas

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
4

Elektrinės charakteristikos

Elektrinės charakteristikos

Darbinė įtampa
1 kV

Naudojimo charakteristikos

Naudojimo charakteristikos

Minimali montavimo temperatūra
0 °C
Maksimali darbinė temperatūra
90 °C
Trumpo jungimo maksimali šerdies temperatūra
250 °C

Resources

Resources

Selling & delivery Information

AXQJ will be delivered in lengths of 250 to 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
