AXQJ TT 24 kV 3-core

Products

AXQJ TT 24 kV 3x95/25

Nexans ref. 21097698

  • Pakavimas: Drum (500m)
  • Laidininko skerspjūvis: 95 mm²
  • Nominalus išorinis diametras: 60,0 mm
  • Apytikslis svoris: 310,0 kg/100m

AXQJ TT 24 kV 3x150/25

Nexans ref. 21097798

  • Pakavimas: Drum (500m)
  • Laidininko skerspjūvis: 150 mm²
  • Nominalus išorinis diametras: 66,0 mm
  • Apytikslis svoris: 380,0 kg/100m

AXQJ TT 24 kV 3x240/35

Nexans ref. 21097898

  • Pakavimas: Drum
  • Laidininko skerspjūvis: 240 mm²
  • Nominalus išorinis diametras: 76,0 mm
  • Apytikslis svoris: 515,0 kg/100m

AXQJ TT 24 kV 3x300/35

Nexans ref. 21097998

  • Pakavimas: Drum (500m)
  • Laidininko skerspjūvis: 300 mm²
  • Nominalus išorinis diametras: 81,2 mm
  • Apytikslis svoris: 560,0 kg/100m

Description

Description

Standards

  • International
    HD 620 S2 2010 10M; IEC 60754-1; IEC 60754-2; IEC 61034-1/2
  • National
    SS 424 14 16

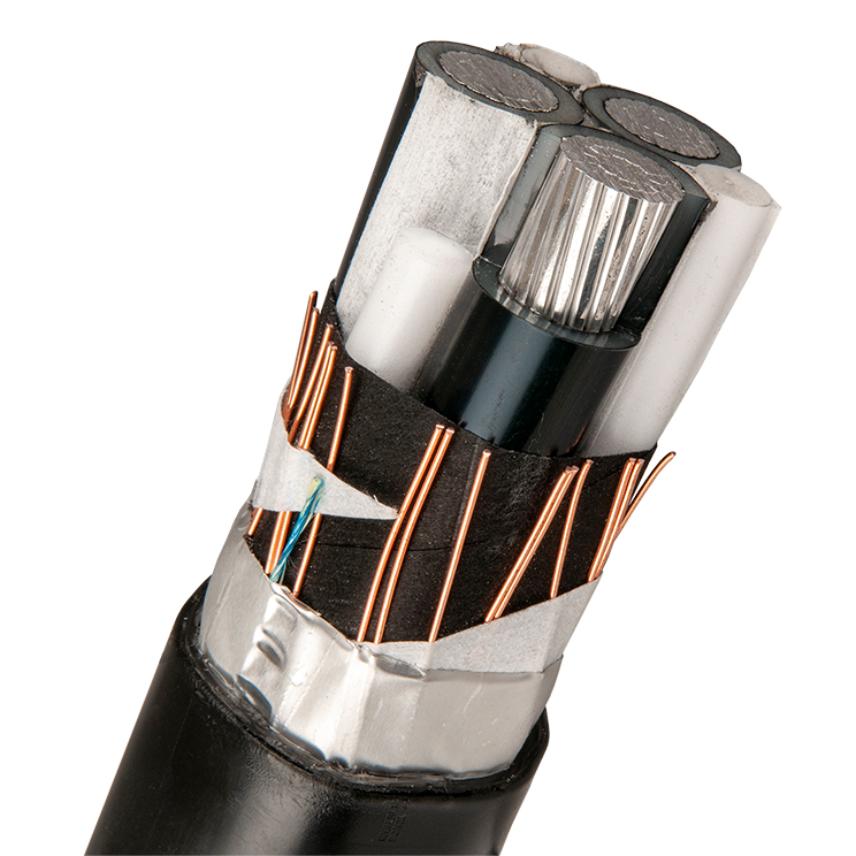

AXQJ TT is a longitudinally and radially waterblocked, XLPE-insulated, CCA screened (aluminium wire with a corrosion protective layer of copper) and HFFR sheated 3-core cable with circular aluminium conductors.. The concentric screen and the aluminium foil has longitudinal contact. The cable is designed in applicable parts according to HD 620 S2 10M.  The conductors are longitudinally water blocked have resistance and number of wires according to IEC 60228 class 2. The sheath is marked type/manufacturer/year+month/metre marking. AXQJ TT meets the requirements for fire class Dcas2d2a2 according to CPR.


Standards

The cable can be loaded according to SS 424 14 16.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Aliumininiai
Laidininko forma
Apvalūs, susuktas
Izoliacija
XLPE
Išorinis apvalkalas
HFFR
Spalva
Juodas
Be nuotėkio
Taip
Ekranas
-

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
3

Elektrinės charakteristikos

Elektrinės charakteristikos

Darbinė įtampa
24 kV

Naudojimo charakteristikos

Naudojimo charakteristikos

Minimali montavimo temperatūra
0 °C
Recommended minimum installation temperature
0 °C
Maksimali darbinė temperatūra
90 °C
Trumpo jungimo maksimali šerdies temperatūra
250 °C
Atsparus vandeniui
Išilginis ir radialinis
Lenkimo faktorius klojant
12 (xD)
Lenkimo faktorius montuojant
10 (xD)

Resources

Resources

Documentation

Selling & delivery Information

The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
