EQFR 450/750 V

Products

EQFR 450/750 V 7X1,5

Nexans ref. 16174198

  • Pakavimas: Drum (m)
  • Šerdžių skaičius: 7
  • Nominalus išorinis diametras: 15,0 mm
  • Apytikslis svoris: 29,0 kg/100m

EQFR 450/750 V 10X1,5

Nexans ref. 16174298

  • Pakavimas: Drum (m)
  • Šerdžių skaičius: 10
  • Nominalus išorinis diametras: 16,0 mm
  • Apytikslis svoris: 35,0 kg/100m

EQFR 450/750 V 14X1,5

Nexans ref. 16174398

  • Pakavimas: Drum (m)
  • Šerdžių skaičius: 14
  • Nominalus išorinis diametras: 17,0 mm
  • Apytikslis svoris: 43,0 kg/100m

EQFR 450/750 V 19X1,5

Nexans ref. 16174498

  • Pakavimas: Drum (m)
  • Šerdžių skaičius: 19
  • Nominalus išorinis diametras: 19,0 mm
  • Apytikslis svoris: 54,0 kg/100m

EQFR 450/750 V 27X1,5

Nexans ref. 16174598

  • Pakavimas: Drum (m)
  • Šerdžių skaičius: 27
  • Nominalus išorinis diametras: 23,0 mm
  • Apytikslis svoris: 83,0 kg/100m

EQFR 450/750 V 37X1,5

Nexans ref. 16174698

  • Pakavimas: Drum (m)
  • Šerdžių skaičius: 37
  • Nominalus išorinis diametras: 25,0 mm
  • Apytikslis svoris: 94,0 kg/100m

EQFR 450/750 V 48x1,5

Nexans ref. 16174798

  • Pakavimas: Drum (m)
  • Šerdžių skaičius: 48
  • Nominalus išorinis diametras: 29,0 mm
  • Apytikslis svoris: 122,0 kg/100m

Description

Description

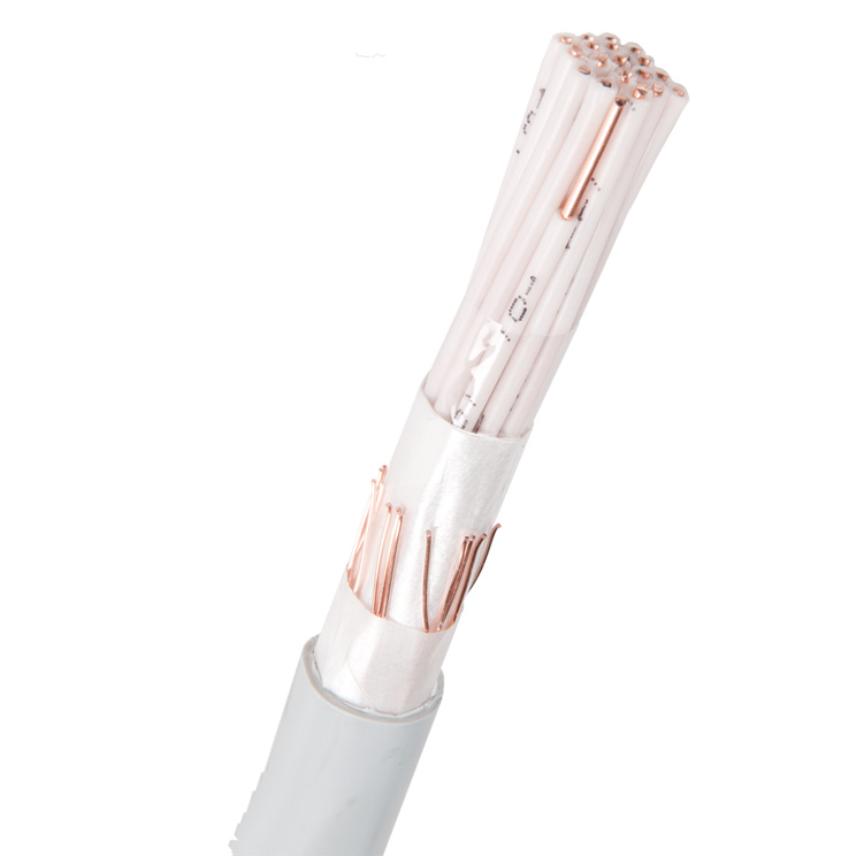

EQFR is a halogen free HFFR-insulated, copper wire screened, HFFR-sheathed control cable with circular, solid copper conductors. The cable is designed according to HD 627 in applicable parts. The conductors have resistance and number of wires according to IEC 60228 class 1. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. EQFR meets the fire requirements according to CPR Dcas2d2a2 and emits no corrosive gases when burning and has low smoke production. The cable is certified by Intertek.


Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


Standards

EQFR is manufactured and tested according to SS 424 03 21 in applicable parts.


Certification

Certified by Intertek.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Variniai
Laidininko forma
Apvalūs
Izoliacija
Halogen free polyolefin
Insulation colour
White
Ekranas
Variniai laidai
Šerdies identifikacinis numeris
Skaičiai
Išorinis apvalkalas
HFFR (poliolefinas)
Spalva
Žalias
Nehalogeninis
Taip

Matmenų charakteristikos

Matmenų charakteristikos

Laidininko skerspjūvis
1,5 mm²

Elektrinės charakteristikos

Elektrinės charakteristikos

Nominali Įtampa Uo/U
450 / 750 V

Naudojimo charakteristikos

Naudojimo charakteristikos

Minimali montavimo temperatūra
-10 °C
Recommended minimum installation temperature
0 °C
Maksimali darbinė temperatūra
70 °C
Trumpo jungimo maksimali šerdies temperatūra
150 °C
Atsparus vandeniui
Geras

Resources

Resources

Documentation

pdf — 51.1 kB

Selling & delivery Information

EQFR will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
