EQQR 450/750 V


EQQR 450/750 V 7X1,5

Nexans ref. 16162198

  • Pakavimas: Drum (500m)
  • Šerdžių skaičius: 7
  • Nominalus išorinis diametras: 12,0 mm
  • Apytikslis svoris: 22,5 kg/100m


EQQR 450/750 V 14X1,5

Nexans ref. 16162498

  • Pakavimas: Drum (500m)
  • Šerdžių skaičius: 14
  • Nominalus išorinis diametras: 15,0 mm
  • Apytikslis svoris: 35,0 kg/100m


EQQR 450/750 V 19X1,5

Nexans ref. 16162598

  • Pakavimas: Drum (500m)
  • Šerdžių skaičius: 19
  • Nominalus išorinis diametras: 17,0 mm
  • Apytikslis svoris: 45,0 kg/100m


EQQR 450/750 V 27X1,5

Nexans ref. 16162698

  • Pakavimas: Drum (500m)
  • Šerdžių skaičius: 27
  • Nominalus išorinis diametras: 20,0 mm
  • Apytikslis svoris: 62,0 kg/100m


EQQR 450/750 V 37X1,5

Nexans ref. 16162798

  • Pakavimas: Drum (500m)
  • Šerdžių skaičius: 37
  • Nominalus išorinis diametras: 23,0 mm
  • Apytikslis svoris: 82,0 kg/100m





  • International
    HD 627.4 S1/C1

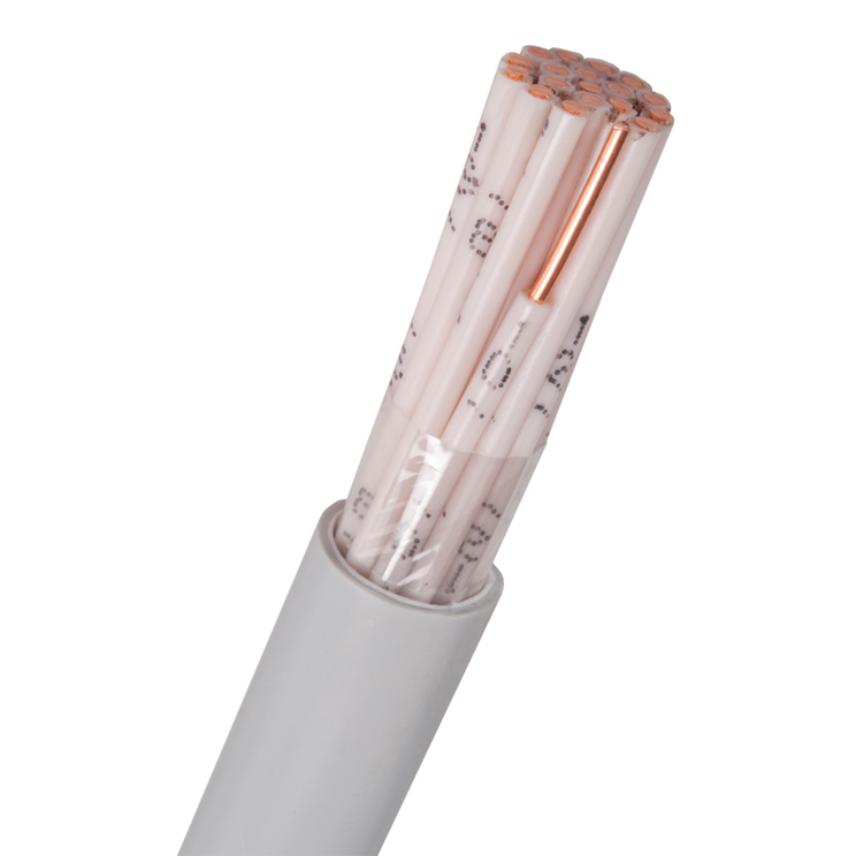

EQQR is a halogen free HFFR-insulated, HFFR-sheathed control cable with circular, solid copper conductors. The cable is designed according to HD 627 in applicable parts. The conductors have resistance and number of wires according to IEC 60228 class 1. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/flema propagation/year+month/metre marking. EQQR meets the fire requirements according to CPR class Dcas2d2a2 and emits no corrosive gases when burning and has low smoke production. The conductor insulation shall be protected against UV light. The cable is certified by Intertek.

Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


EQQR is manufactured and tested according to HD 627.4-C1 in applicable parts.


Approved by Intertek.

Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.



Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Laidininko forma
Halogen free polyolefin
Išorinis apvalkalas
HFFR (poliolefinas)

Matmenų charakteristikos

Matmenų charakteristikos

Laidininko skerspjūvis
1,5 mm²

Elektrinės charakteristikos

Elektrinės charakteristikos

Nominali Įtampa Uo/U
450 / 750 V

Naudojimo charakteristikos

Naudojimo charakteristikos

Minimali montavimo temperatūra
−10 °C
Recommended minimum installation temperature
0 °C
Maksimali darbinė temperatūra
70 °C
Trumpo jungimo maksimali šerdies temperatūra
150 °C
Atsparumas ultravioletiniams spinduliams



Selling & delivery Information

EQQR will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
