FQAR-PG 150/250 V 8X2X0,5

Description

Description

Standards

  • International
    HD 627.4 C2

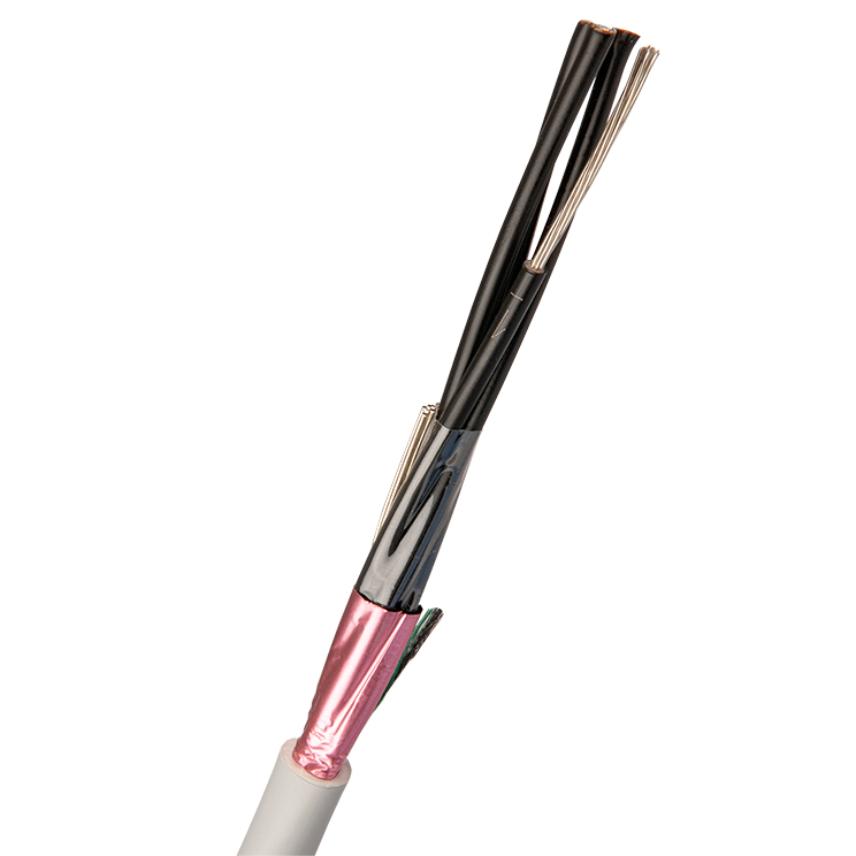

FQAR-PG is a halogen free HFFR-insulated, aluminium screened, HFFR-sheathed control cable with circular, stranded, tinned copper conductors cabled in pairs. To simplify the stripping the cable is provided with a tear thread. The cable is designed according to HD 627 in applicable parts. The cores are identified by numbers according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. FQAR-PG meets the requirements for fire classification according to CPR Dcas2d2a2 and have protection against exposure of UV-light according to HD 626 S1 part 2.5.1. The cable is certified by Intertek SEMKO.


Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


Certification

Certified by Intertek SEMKO.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Alavuoti variniai
Laidininko forma
Alavuotas, metalu padengtas, susuktas
Izoliacija
Nehalogeninis mišinys
Išorinis apvalkalas
HFFR (poliolefinas)
Spalva
Žalias
Nehalogeninis
Taip

Matmenų charakteristikos

Matmenų charakteristikos

Laidininko skerspjūvis
0,5 mm²
Porų skaičius
8
Šerdžių skaičius
16
Vidutinio apvalkalo storis
1,2 mm
Nominalus išorinis diametras
13,5 mm
Apytikslis svoris
21,1 kg/100m

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
40,4 Ohm/km
Ominė izoliacijos varža
100 MOhm.km
Nominalus induktyvumas montuojant
0,7 mH/km
Nominali Įtampa Uo/U
150 / 250 V
Maksimali talpa, pora / šerdis-šerdis
55 nF/km

Naudojimo charakteristikos

Naudojimo charakteristikos

Minimali montavimo temperatūra
−10 °C
Recommended minimum installation temperature
0 °C
Maksimali darbinė temperatūra
70 °C
Minimalus darbinė temperatūra
−40 °C
Ilgis
500 m
Pakavimas
K7
Lenkimo faktorius klojant
8 (xD)
Atsparumas ultravioletiniams spinduliams
Taip

Resources

Resources

Selling & delivery Information

FQAR will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.

Declaration of Performance

  • Declaration of Performance n� : 1000308-SEGR
  • Certification Date : 2018-01-26
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 0402
  • Declared performance : Dca-s2,d2,a2
