H07V-K 95 (RK) 450/750V

Description

Description

Standards

  • International
    EN 50525-2-31

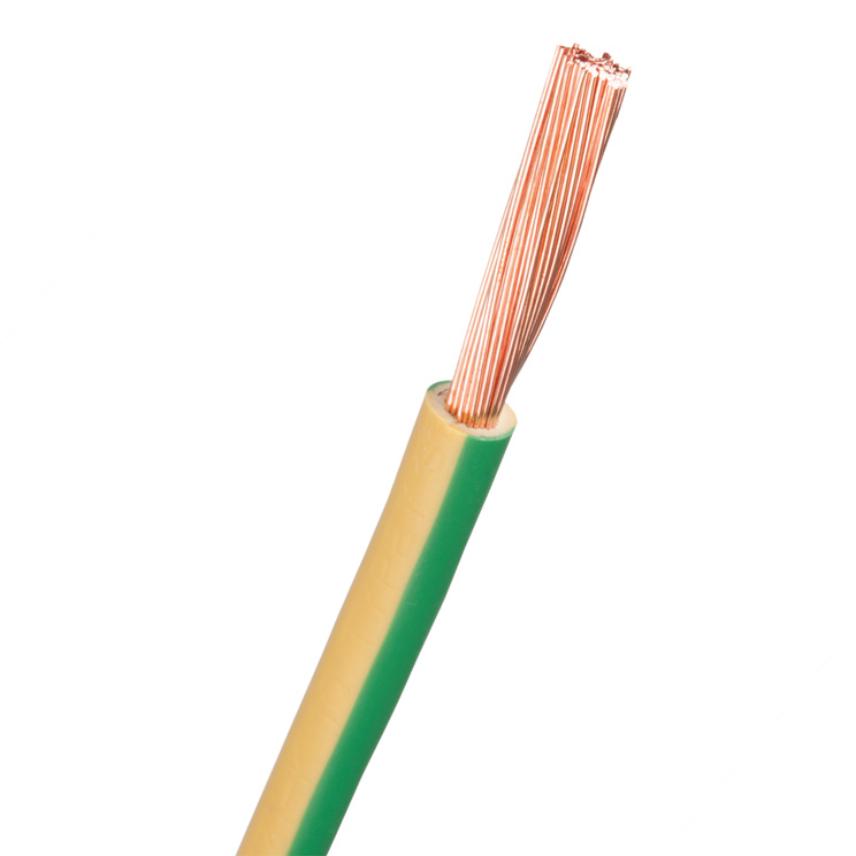

H07V-K is a lead free, PVC insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-2-31. The conductor has resistance according to IEC 60228 class 5. The insulation is marked "NEXANS GS H07V-K AREA mm2 SEMKO HAR YEAR/MONTH" for cables up to 240 mm2. S07V-K 300 mm2 and 400 mm2 is marked "Nexans GS AREA mm2". H07V-K meets the requirements for CPR class Eca. This product is also part of our Windlink® offer dedicated to wind turbines.


Certification

Certifeid by INTERTEK SEMKO.


Quality system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Spalva
Geltonas / žalias
Laidininko medžiagos
Pliki variniai
Laidininko forma
Žiedinis
Laidininko lankstumas
Lankstus, klasė 5
Izoliacija
PVC
Nehalogeninis
Ne

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
1
Laidininko skerspjūvis
95 mm²
Skaičius šerdies laidų (nb x mm Ø)
-
Laidininko diametras
12,8 mm
Vidutinis izoliacijos storis
1,6 mm
Nominalus išorinis diametras
16,0 mm
Apytikslis svoris
875 kg/km

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
0,206 Ohm/km
Nominali Įtampa Uo/U
450 / 750 V

Naudojimo charakteristikos

Naudojimo charakteristikos

Ilgis
500 m
Pakavimas
K8
Ugniai atsparus
IEC 60332-1
Darbinė temperatūra, diapazonas
0 ... 70 °C
Bending factor when installed
4 (xD)

Resources

Resources

Selling & delivery Information

H07V-K is delivered in specified lengths. The package is marked with manufacturer, type of cable, length and manufacturing date. On the label on boxes upon request also the customer item number and/or order number.

Declaration of Performance

  • Declaration of Performance n� : 1000127-SEGR
  • Certification Date : 2017-03-23
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 366
  • Declared performance : Eca
