ALSECURE® PREMIUM EQQXB
ALSECURE® PREMIUM EQQXB
ALSECURE® PREMIUM

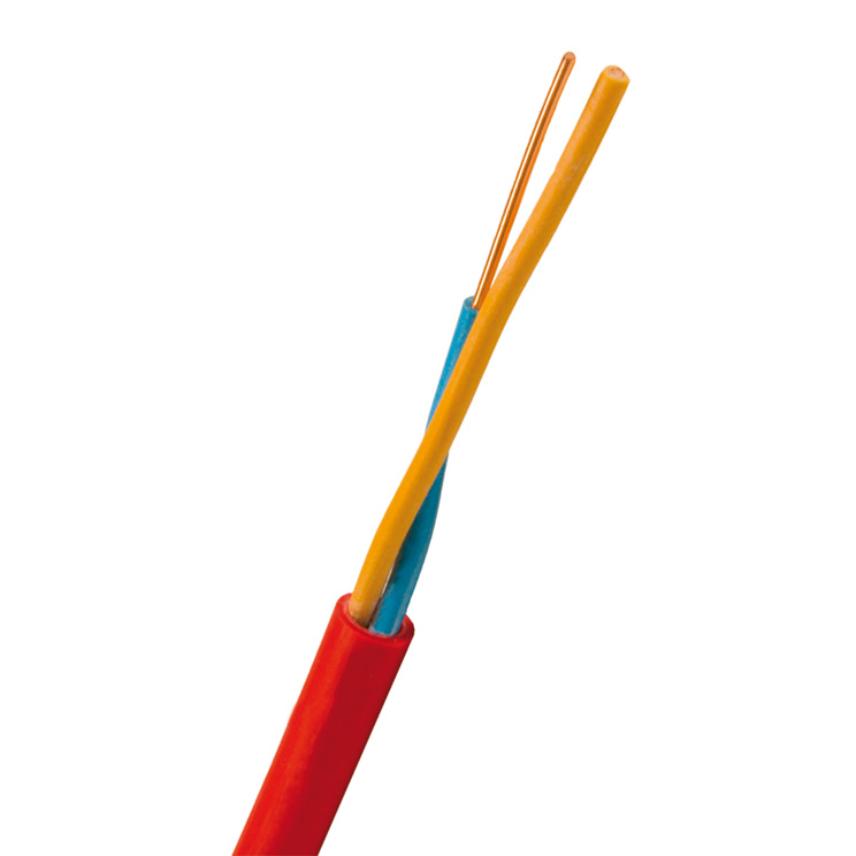

Fire resistant, fire alarm cable with halogen free, flame retardant sheath.
Read moreALSECURE PREMIUM 2x1,0 mm
Nexans ref. 17542171
- Pakavimas: Reel (500m)
- Vidutinio apvalkalo storis: 1,0 mm
- Nominalus išorinis diametras: 6,2 mm
- Apytikslis svoris: 4,8 kg/100m
ALSECURE PREMIUM 10x2x1,0 mm
Nexans ref. 17542698
- Pakavimas: Drum (500m)
- Vidutinio apvalkalo storis: 1,5 mm
- Nominalus išorinis diametras: 17,2 mm
- Apytikslis svoris: 35,0 kg/100m
Description
Description
Standards
-
InternationalIEC 60332-1; IEC 60332-3 Cat.C
Design
Halogen free, flame retardant , fire resistant, pair-twisted signalling cable. ALSECURE PREMIUM EQQXB is used as a signalling cable in fire alarm installations where there is a demand for function also during and after a fire. The cable is intended for fixed installation indoors according to SS 424 14 38.
Meets fire safety requirements according to IEC 60331-2/EN 50200 and fire spread requirements according to IEC 60332-3-24
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Konstrukcinės charakteristikos
Konstrukcinės charakteristikos
Matmenų charakteristikos
Matmenų charakteristikos
Elektrinės charakteristikos
Elektrinės charakteristikos
Naudojimo charakteristikos
Naudojimo charakteristikos
Resources
Resources
Documentation
Selling & delivery Information
ALSECURE PREMIUM® EQQXB will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
