Earthconductor CCS

Products

Jordlina CCS 25

Nexans ref. 26000098-201-05

  • Pakavimas: Drum (500m)
  • Apytikslis svoris: 232 kg/km
  • Nominalus išorinis diametras: 7,3 mm
  • Maksimalus nuolatinės srovės laidininko varža esant 20° C: 0,75 Ohm/km

Jordlina CCS 35

Nexans ref. 26000198-201-05

  • Pakavimas: Drum (500m)
  • Apytikslis svoris: 327 kg/km
  • Nominalus išorinis diametras: 8,2 mm
  • Maksimalus nuolatinės srovės laidininko varža esant 20° C: 0,524 Ohm/km

Jordlina CCS 50

Nexans ref. 26000298-201-05

  • Pakavimas: Drum (500m)
  • Apytikslis svoris: 456 kg/km
  • Nominalus išorinis diametras: 9,5 mm
  • Maksimalus nuolatinės srovės laidininko varža esant 20° C: 0,387 Ohm/km

Description

Description

Standards

  • International
    IEC 60228

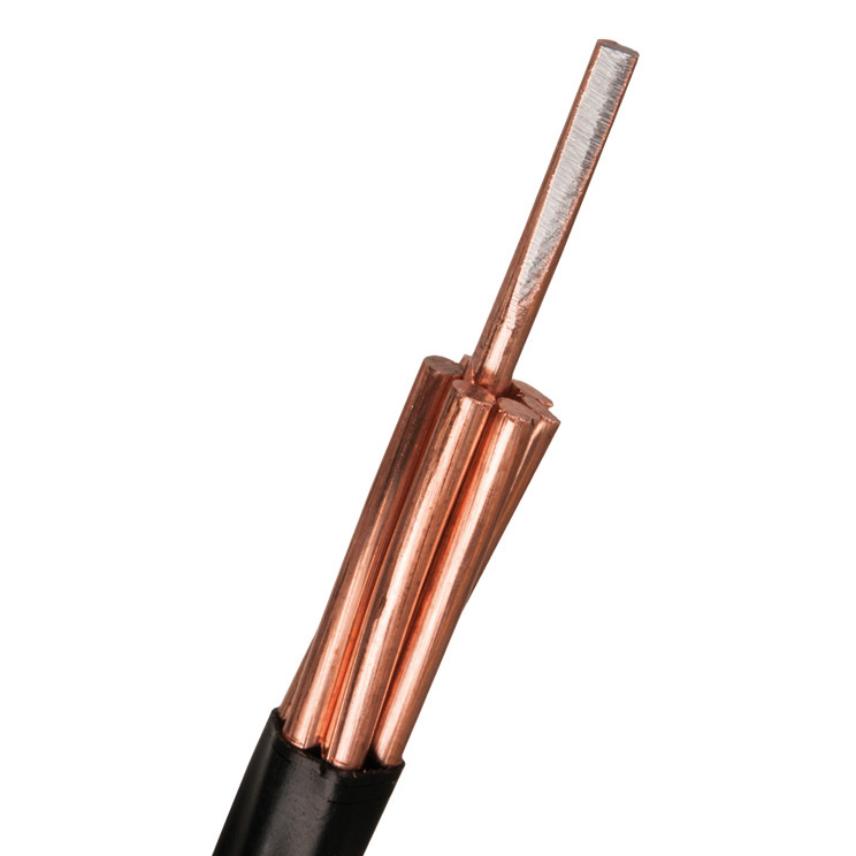

The conductor have resistance according to SS-EN 60228. In the center there is a wire of copper-plated steel (CCS) and the conductor is coated with black conductive plastic. In order to facilitate siting, the conductor is annealed.

Characteristics

Characteristics

Naudojimo charakteristikos

Naudojimo charakteristikos

Trumpo jungimo maksimali šerdies temperatūra
370 °C
