ALUS 1 kV

Products

ALUS 1 kV 4x50

Nexans ref. 14010998-201-05 - Country ref. 0012845

  • Pakavimas: Drum (500m)
  • Laidininko skerspjūvis: 50 mm²
  • Nominalus išorinis diametras: 26,0 mm
  • Apytikslis svoris: 65,0 kg/100m



ALUS 1 kV 4x95

Nexans ref. 14011098-201-05 - Country ref. 0012855

  • Pakavimas: Drum (500m)
  • Laidininko skerspjūvis: 95 mm²
  • Nominalus išorinis diametras: 34,0 mm
  • Apytikslis svoris: 119,0 kg/100m



Description

Description

Standards

  • International
    HD 626 S1 part1; HD 626 S1 part2; HD 626 S1 part3 section L

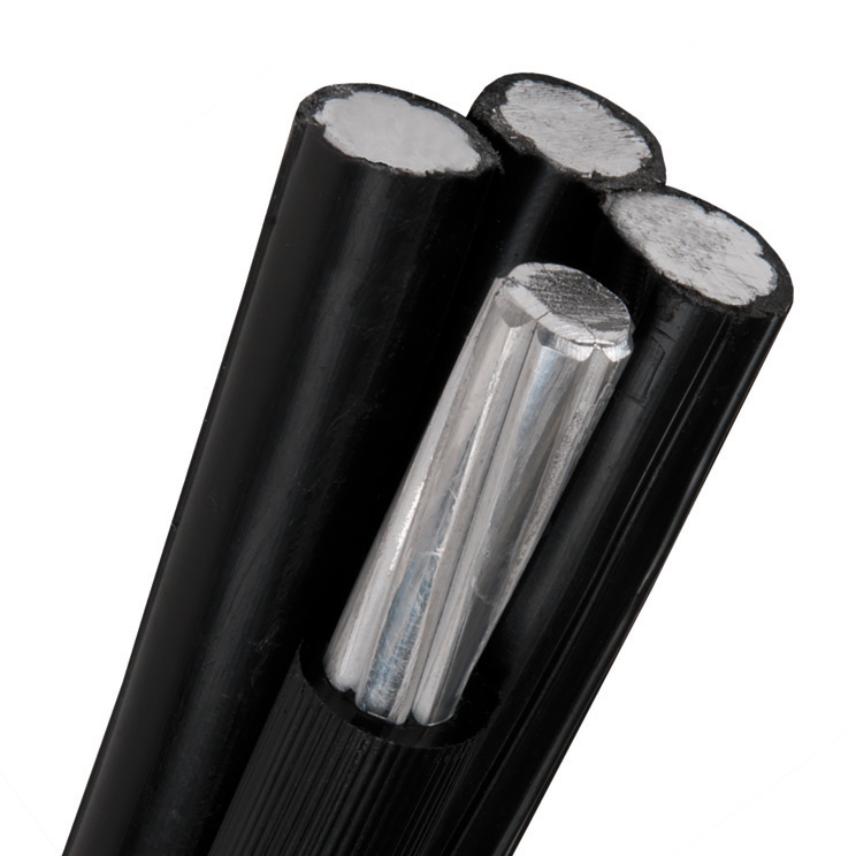

ALUS is a halogen free, PE-insulated, aerial bundled cable with circular, stranded aluminium conductors. The cable is designed according to HD 626. The conductors have resistance and number of wires according to IEC 60228 class 2. The cores are identified by longitudinally ridges according to HD 308. The cable is marked type/manufacturer/year+month. ALUS is not flame retardant.



Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.



Standards

ALUS is manufactured and tested according to SS 424 14 26.The cable can be loaded in accordance with valid powercurrent regulations and SS 424 14 24.



Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Aliumininiai
Laidininko forma
Apvalūs, susuktas
Izoliacija
PE
Spalva
Juodas
Nehalogeninis
Taip
Laidininko lankstumas
Class 2

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
4

Elektrinės charakteristikos

Elektrinės charakteristikos

Nominali Įtampa Uo/U
0.6 / 1 kV

Naudojimo charakteristikos

Naudojimo charakteristikos

Minimali montavimo temperatūra
−20 °C
Maksimali darbinė temperatūra
65 °C
Trumpo jungimo maksimali šerdies temperatūra
100 °C
Montavimo tipas
Orinis kabelis

Resources

Resources

Selling & delivery Information

ALUS will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
