AXMK PE 1 kV

Description

Description

Standards

  • International
    HD 603 S1/5D

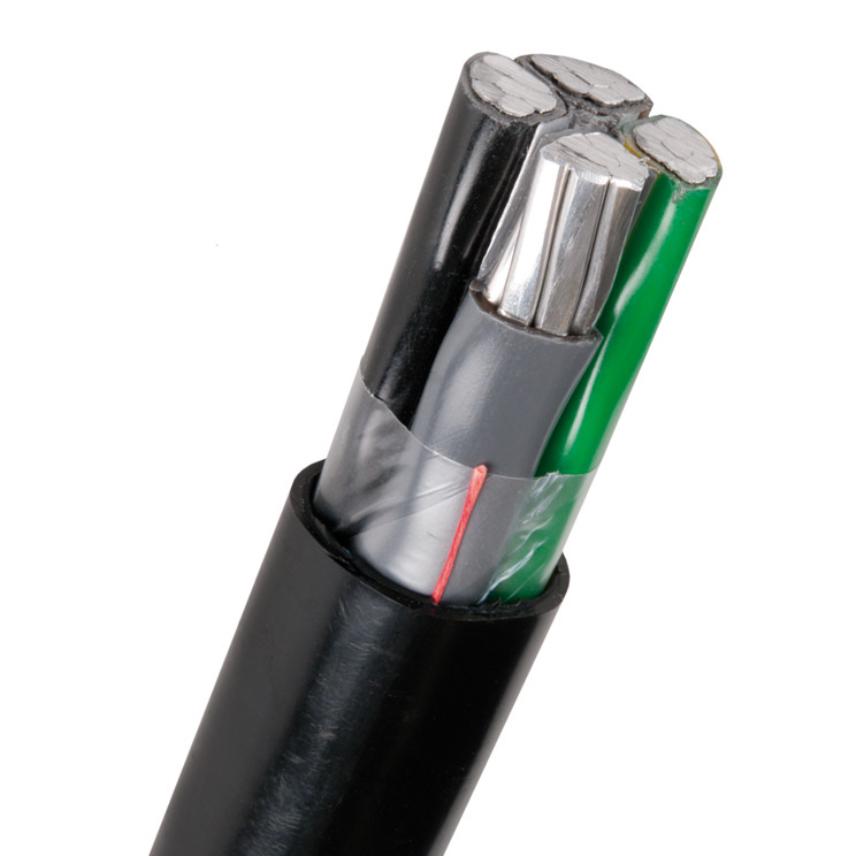

AXMK-PE is a halogen free, XLPE-insulated, PE-sheathed cable with sector shaped, stranded, aluminium conductors. The conductors are annealed. To simplify the removal of the sheath a tear thread has been added under the sheath. The cable is designed according to HD 603. The conductors have resistance and number of wires according to IEC 60228 class 2, and the insulation is UV-protected. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. AXMK-PE is not flame retardant. The cable is certified by SGS Fimko.



Lifemark(TM) recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.



Standards

AXMK-PE is manufactured and tested according SFS 4879.The cable can be loaded in accordance with valid power current regulations.



Certification

Approved by SGS Fimko.



Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
-
Izoliacija
-
Išorinis apvalkalas
PE
Spalva
-
Nehalogeninis
Taip
Laidininko forma
Sektoriaus formos, susuktas (SM)
Laidininko lankstumas
Susuktas
Su mažesniu neutraliu laidininku
-
Su žalia/geltona šerdimi
-

Matmenų charakteristikos

Matmenų charakteristikos

Šerdžių skaičius
-
Laidininko skerspjūvis
- mm²
Nominalus išorinis diametras
- mm
Apytikslis svoris
- kg/100m
Neutralus laidininkas, atkarpa
- mm²

Elektrinės charakteristikos

Elektrinės charakteristikos

Nominali Įtampa Uo/U
-

Naudojimo charakteristikos

Naudojimo charakteristikos

Minimali montavimo temperatūra
−20 °C
Maksimali darbinė temperatūra
- °C
Trumpo jungimo maksimali šerdies temperatūra
- °C
Atsparumas ultravioletiniams spinduliams
Taip
Lenkimo faktorius klojant
12 (xD)
Lenkimo faktorius montuojant
8 (xD)
Montavimo tipas
Išorės – Tiesioginis užkasimas

Resources

Resources

Documentation

Selling & delivery Information

AXMK-PE will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
