AXQ INFRA 1kV 4G150

Description

Description

Standards

  • International
    HD 603 S1/5P
  • National
    SS 424 14 18

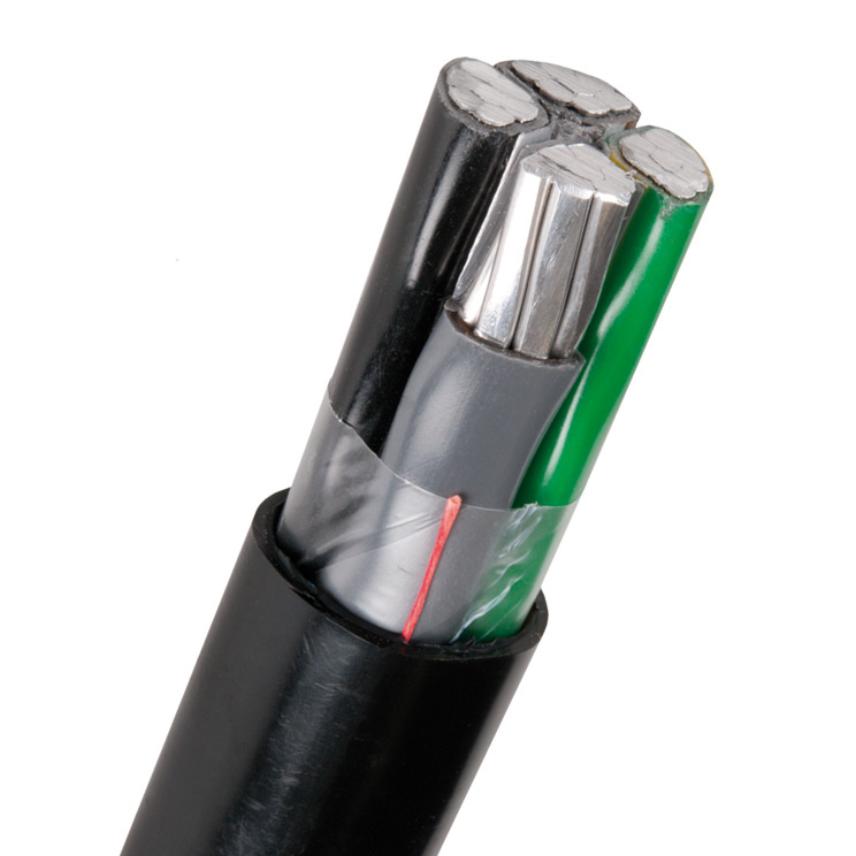

AXQ INFRA  is a halogen free, XLPE-insulated, HFFR-sheathed cable with sector shaped (50-240 mm² ) or round (16-25 mm²) stranded aluminium conductors. The cables (50-240 mm² ) for TNS-system has an earth conductor of annealed copper. 16-25 mm² and 50-240 mm² for TNC-system has an earth conductor of aluminium. AXQ INFRA  is designed according to HD 603 in applicable parts. The conductors have resistance and number of wires according to SS-EN 60228 class 2. The cores are identified by colours according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. The cable type meets the requirements for CPR class E. The cable emits no corrosive gases and has low smoke production during fire. The sheath opens with cable tear thread.



Standards

AXQ INFRA 1 kV is manufactured and tested according to HD 603 S1/5P in applicable parts. The cable can be loaded in accordance with national regulations on electrical installations.



Certification

Certified by Intertek SEMKO.



Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.



Lifemark™ recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.



Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Aliumininiai
Izoliacija
XLPE
Išorinis apvalkalas
HFFR (poliolefinas)
Spalva
Juodas
Laidininko forma
Sektoriaus formos
Laidininko lankstumas
Class 2
Nehalogeninis
Taip
Su mažesniu neutraliu laidininku
Ne
Su žalia/geltona šerdimi
Taip

Matmenų charakteristikos

Matmenų charakteristikos

Apytikslis svoris
226,0 kg/100m
Šerdžių skaičius
4
Laidininko skerspjūvis
150 mm²
Vidutinis izoliacijos storis
1,4 mm
Vidutinio apvalkalo storis
2,4 mm
Nominalus išorinis diametras
43,0 mm
Diametras, su izoliacija
- mm
Laidininko diametras
- mm
Neutralus laidininkas, atkarpa
- mm²
Įžeminimo laidininko skerspjūvis
- mm²

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
0,206 Ohm/km
Varža, ekranas
- Ohm/km
Nominali fazės talpa
0,13 µF / km
Nominali Įtampa Uo/U
0.6 / 1 kV
Nominalus induktyvumas
0,23 mH/km
Reactance at 50 Hz
- Ohm/km

Naudojimo charakteristikos

Naudojimo charakteristikos

Minimali montavimo temperatūra
−10 °C
Maksimali darbinė temperatūra
90 °C
Trumpo jungimo maksimali šerdies temperatūra
250 °C
Ilgis
500 m
Pakavimas
K18
Dūmų tankis
IEC 61034
Atsparumas ultravioletiniams spinduliams
Taip
Lenkimo faktorius montuojant
8 (xD)
Rip cord
Yes

Resources

Resources

Selling & delivery Information

AXQ INFRA will be delivered in lengths of 500 or 250 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.

Declaration of Performance

  • Declaration of Performance n� : 1000120-SEGR
  • Certification Date : 2017-07-21
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 0366
  • Declared performance : Eca
