FXQ Easy™1kV 5G1,5

Description

Description

Standards

  • International
    HD 603 S1/5O
  • National
    SS 424 14 18

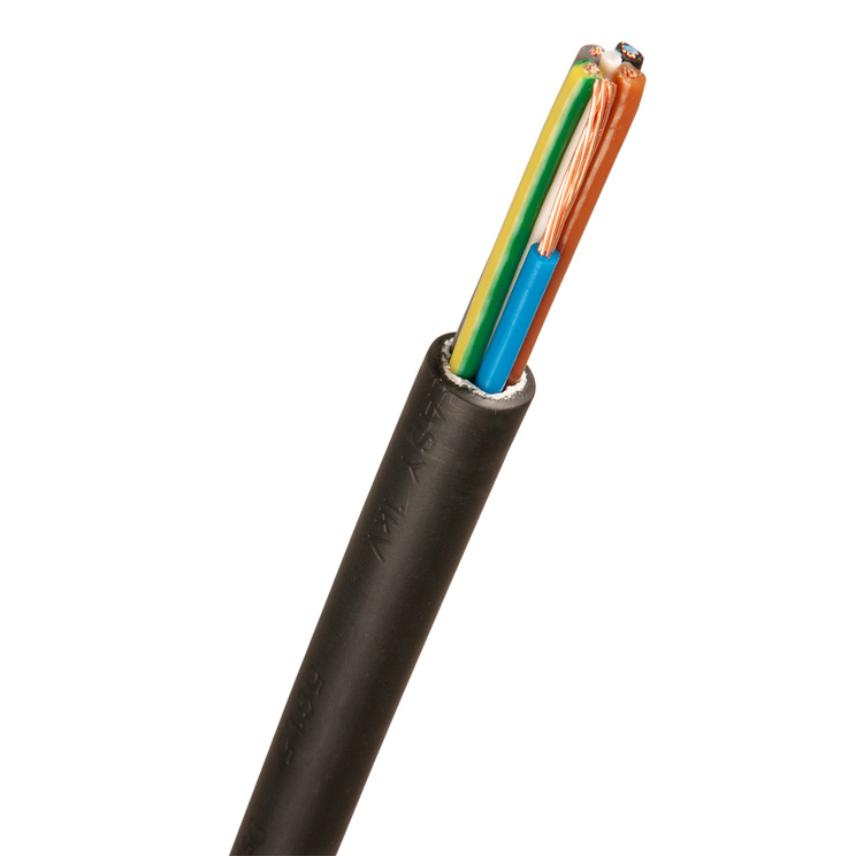

FXQ Easy™ 1 kV is a PEX-insulated and HFFR-sheathed house wiring cable with circular, stranded copper conductors. The cable is designed according to SS 424 14 18 in applicable parts. The conductors have resistance and number of wires according to EN 60228 class 2. The cores are identified by colours according to HD 308. The cable has a white inner layer of the sheath. The inner layer have longitudinal ridges which make the cable extremely easy to strip and resistant against pressure and impact. The sheath is marked type/manufacturer/year+month/metre marking. FXQ Easy™ 1 kV meets the requirements for flammability class Dcas2d2a2 according to CPR and have protection against exposure of UV-light according to HD 626 S1 part 2.5.1. The conductor insulation shall be protected against UV light that can occur for example in light fixtures and light signs.


Lifemark™ recycling marking

The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.


Quality and environmental management system

Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.

Characteristics

Characteristics

Konstrukcinės charakteristikos

Konstrukcinės charakteristikos

Laidininko medžiagos
Variniai
Laidininko forma
Apvalūs, susuktas
Su žalia/geltona šerdimi
Taip
Izoliacija
XLPE (Cross-linked Polyethylene)
Išorinis apvalkalas
HFFR (poliolefinas)
Spalva
Juodas
Laidininko lankstumas
Class 2
Nehalogeninis
Taip
Su mažesniu neutraliu laidininku
Ne

Matmenų charakteristikos

Matmenų charakteristikos

Nominalus išorinis diametras
11,6 mm
Šerdžių skaičius
5
Laidininko skerspjūvis
1,5 mm²
Laidininko diametras
1,4 mm
Apytikslis svoris
19,0 kg/100m
Vidutinis izoliacijos storis
0,7 mm
Vidutinio apvalkalo storis
1,8 mm
Neutralus laidininkas, atkarpa
- mm²

Elektrinės charakteristikos

Elektrinės charakteristikos

Maksimalus nuolatinės srovės laidininko varža esant 20° C
12,1 Ohm/km
Nominali Įtampa Uo/U
0.6 / 1 kV

Mechaninės charakteristikos

Mechaninės charakteristikos

Kabelio lankstumas
-

Naudojimo charakteristikos

Naudojimo charakteristikos

Minimali montavimo temperatūra
−15 °C
Maksimali darbinė temperatūra
90 °C
Trumpo jungimo maksimali šerdies temperatūra
250 °C
Ilgis
500 m
Lenkimo faktorius klojant
8 (xD)
Pakavimas
K7
Atsparumas ultravioletiniams spinduliams
Taip
Dūmų tankis
IEC 61034
Minimalus darbinė temperatūra
−40 °C

Resources

Resources

Selling & delivery Information

FXQ Easy™ 1 kV will be delivered in lengths of 50 and 500 m. The packaging is marked with manufacturer, type of cable and length.

Declaration of Performance

  • Declaration of Performance n� : 1000266-SEGR
  • Certification Date : 2017-04-12
  • AVCP (Assessment and Verification of Constancy of Performance) : System 3
  • Notified body : 0366
  • Declared performance : Dca-s2,d2,a2
